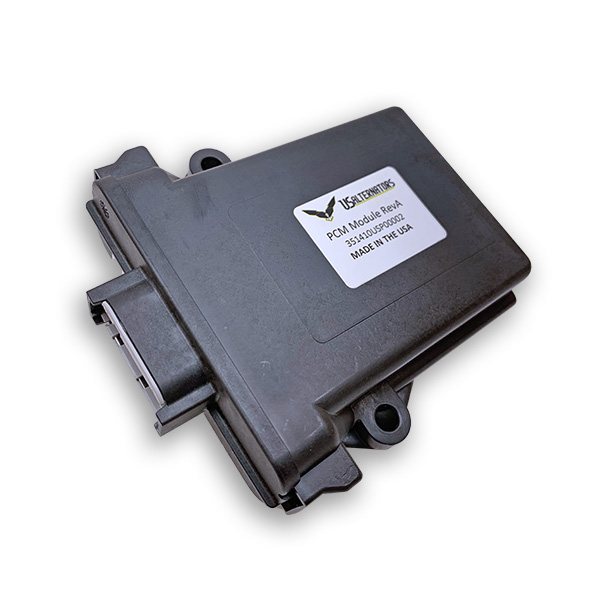

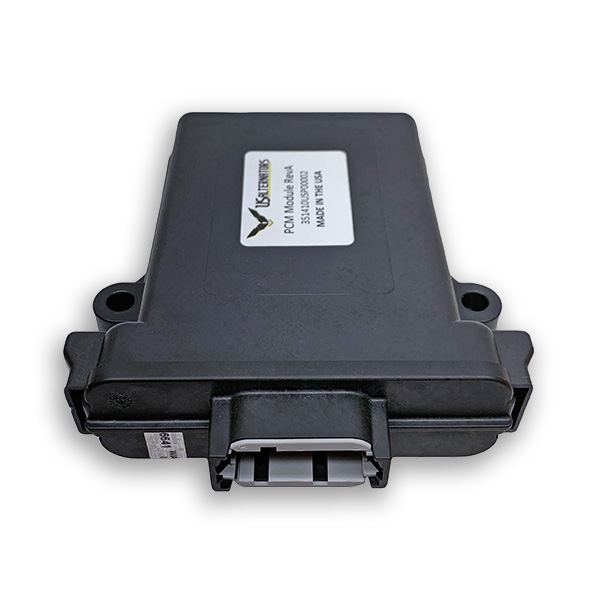

PCM MODULE

General Information

Made for OEM integration on PCM controlled charging systems, our module can either be programmed to a set voltage or allow for adjustable voltage while maintaining battery light function. It also allows the retrofit of PCM regulators on older cars to dial in on the exact desired voltage. Designed for in-cabin or under-hood applications, the US Alternators PCM module is an easy install solution for most Ford, GM, Chevrolet, Buick, Cadillac, and Lincoln vehicles. Modules for most Honda, Toyota, Mazda, Infiniti, Lexus, Mitsubishi, Nissan, Scion, and Subaru vehicles will be released soon.

Detailed Information

  • Integrates with vehicle’s stock PCM regulation
  • Fixed voltage module set at 14.8V +/- 0.2V
  • Adjustable voltage range from 12.5-15.5V +/- 0.2V
  • Voltage+ range from 12.5-16V +/- 0.2V (Ford only)
  • Can support up to (4) alternators
  • Maintain stock battery light functionality
  • Engineered and made in USA to OEM standards
  • Reverse voltage protected with robust electrical design

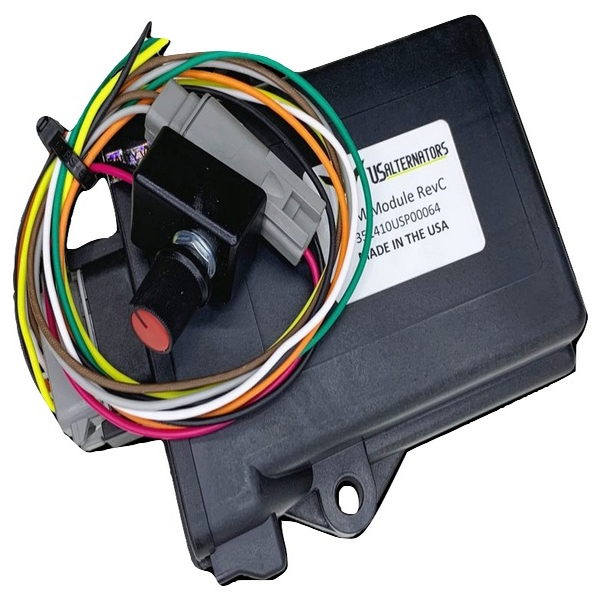

  • Includes 1 alternator plug for easy installation / no cutting wires / easily revert back to OEM spec
  • Black > Ground
  • Orange > Ignition (8-16V)
  • White > Output #1
  • Gray > Output #2
  • Yellow > Battery Light #1
  • Pink > Battery Light #2
  • Red > Power 12V (8-16V)
  • Not all applications will use all connections
  • Output #1 is only used for Ford, Mazda alternator installations
  • Output #2 is only used for Buick, Cadillac, Chevrolet, GMC alternator installations
  • 20 AWG or larger wire is recommended
  • 3A-5A fuses are recommended on both power and ignition wires
  • Battery Light #1 used for grounded lights
  • Battery Light #2 used for feedback lights
  • 5.25″ long
  • 4.75″ wide
  • 1.5″ thick

Shop Your Vehicle

For Ford Style Plugs

For GM Style Plugs

Suffering from low voltage?

Contact US Alternators today for a safe and reliable solution designed to integrate with your vehicle’s stock PCM regulation and boost voltage.
